| Brand Name: | HX |
| Model Number: | HX-SSCN-A |
| MOQ: | 2000 PCS |
| Price: | negotiatiable |
| Delivery Time: | 15 -20 Days upon 1*20GP |
| Payment Terms: | L/C, T/T |

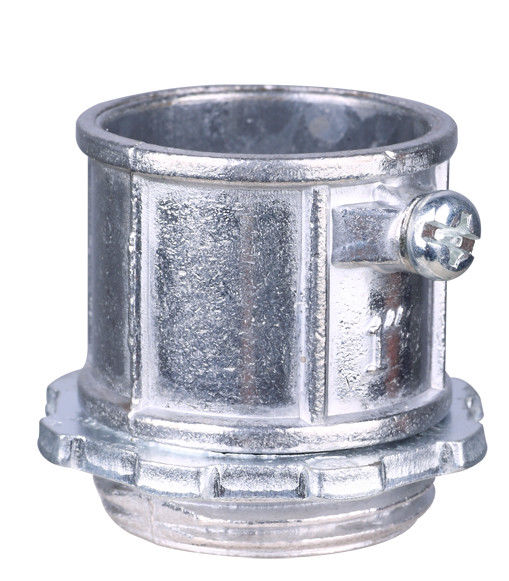

EMT fittings , EMT connector Alu , steel EMT connector set screw type
EMT set-screw electrical connectors are used in dry locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. In damp locations, set-screw connectors are of excellent corrosion protection with zinc electroplated. EMT set-screw connectors are made with a diverse combination screw head that can securely fasten conduit to designated electrical junction box or enclosure using a slotted Phillips, or Robertson head screw driver.
Features:
- Aluminum
- Polish
- Concrete-Tight when Taped
- Suitable for applications above 600V
- Sizes 21/2" to 4" are also listed for RIGID and IMC Conduits
| Cat# | Size | d | d1 | L | |
| SSCN-A | -050 | 1/2" | G1/2" | 18.5 | 19 |
| SSCN-A | -075 | 3/4" | G3/4" | 24 | 23.3 |
| SSCN-A | -100 | 1" | G1" | 30 | 25 |
| SSCN-A | -125 | 11/4" | G11/4" | 38.8 | 34 |
| SSCN-A | -150 | 11/2" | G11/2" | 45 | 36.2 |
| SSCN-A | -200 | 2" | G2" | 56.4 | 43 |
| SSCN-A | -300 | 3" | G3" | 90 | 85 |
| SSCN-A | -400 | 4" | G4" | 115 | 94 |
|
|
| Brand Name: | HX |
| Model Number: | HX-SSCN-A |
| MOQ: | 2000 PCS |
| Price: | negotiatiable |
| Packaging Details: | Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet ( customers' packing requiement accepted ) |
| Payment Terms: | L/C, T/T |
EMT fittings , EMT connector Alu , steel EMT connector set screw type
EMT set-screw electrical connectors are used in dry locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. In damp locations, set-screw connectors are of excellent corrosion protection with zinc electroplated. EMT set-screw connectors are made with a diverse combination screw head that can securely fasten conduit to designated electrical junction box or enclosure using a slotted Phillips, or Robertson head screw driver.
Features:
- Aluminum
- Polish
- Concrete-Tight when Taped
- Suitable for applications above 600V
- Sizes 21/2" to 4" are also listed for RIGID and IMC Conduits
| Cat# | Size | d | d1 | L | |
| SSCN-A | -050 | 1/2" | G1/2" | 18.5 | 19 |
| SSCN-A | -075 | 3/4" | G3/4" | 24 | 23.3 |
| SSCN-A | -100 | 1" | G1" | 30 | 25 |
| SSCN-A | -125 | 11/4" | G11/4" | 38.8 | 34 |
| SSCN-A | -150 | 11/2" | G11/2" | 45 | 36.2 |
| SSCN-A | -200 | 2" | G2" | 56.4 | 43 |
| SSCN-A | -300 | 3" | G3" | 90 | 85 |
| SSCN-A | -400 | 4" | G4" | 115 | 94 |
