| Brand Name: | HX |
| Model Number: | HX-SSCN-S |
| MOQ: | 2000 PCS |
| Price: | negotiatiable |
| Delivery Time: | 15 -20 Days upon 1*20GP |
| Payment Terms: | L/C, T/T |
EMT connector set screw type , Steel EMT connector, emt fittings
|

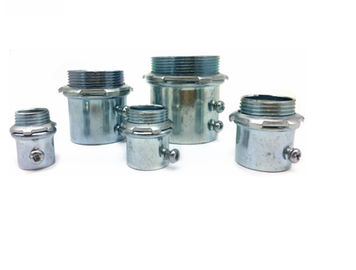

EMT SET SCREW CONNECTOR
|
|
UL 514B
|
|
STEEL
|
|
Zinc Electro-Plated
|
|
Concrete-Tight when Taped
|
|
Suitable for applications above 600V
|
|
Connects EMT conduit to steel boxes and other metal enclosures
|
|
Sizes 2-1/2'' to 4'' are also listed for RIGID and IMC Conduits
|
| Cat# | Size | D | D2 | L | |
| SSCN-S | -050 | 1/2" | 18.5 | 21.5 | 35 |
| SSCN-S | -075 | 3/4" | 24 | 27 | 39 |
| SSCN-S | -100 | 1" | 30.2 | 34.2 | 43 |
| SSCN-S | -125 | 11/4" | 39 | 43 | 51 |
| SSCN-S | -150 | 11/2" | 44.8 | 48.8 | 62 |
| SSCN-S | -200 | 2" | 56.5 | 60.5 | 77 |
| SSCN-S | -250 | 21/2" | 74 | 80 | 86 |
| SSCN-S | -300 | 3" | 90.5 | 96.5 | 94 |
| SSCN-S | -400 | 4" | 115.5 | 121.5 | 107 |
|
|
