| Brand Name: | HX |
| Model Number: | HX-LQ |
| MOQ: | 1000 M |
| Price: | negotiatiable |
| Delivery Time: | 15-20days upon 1* 20GP |
| Payment Terms: | L/C, T/T |

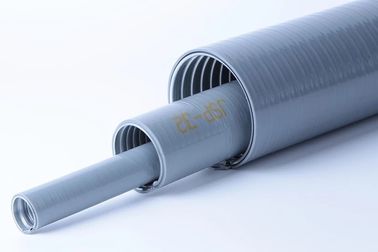

1" Liquid tight flexible conduit , JSB Steel liquid tight conduit
FEATURES:
1) Material: (inner layer) adopting galvanized steel band with special insulation treatment
(outer layer) adopting PVC raw material (anti-UV, anti-aging)
2) Working temperature:-10 °c ~+80°c
3) Long service life
4 )Good mechanical protection
5) Good bending flexibility
6) The flexible pipes have extremely good waterproof, insulating and pull resistance.
7) The thickened surface is made of PVC. The surface is smooth. The PVC plastic is added with fire retarding agent.
8 )The structure is buckle structure, which enhances the pull resistance and is not liable to crack or deform.
| SIZE | ID(mm) | OD(mm) | Bending Radius (mm) |
Lenght/roll m | ||
| MIN | MAX | MIN | MAX | |||
| 1/2" | 15.8 | 16.2 | 20.8 | 21.3 | 85 | 50 |
| 3/4" | 20.7 | 21.1 | 26.3 | 21.6 | 100 | 50 |
| 1" | 6.2 | 26.8 | 32.7 | 33.4 | 150 | 50 |
| 11/4" | 34.7 | 35.3 | 41.4 | 42.2 | 180 | 20 |
| 11/2" | 40 | 40.7 | 47.4 | 48.3 | 220 | 20 |
| 2" | 50.8 | 51.6 | 59.4 | 60.3 | 250 | 20 |
| 21/2" | 63 | 63.6 | 72.1 | 73 | 300 | 10 |
| 3" | 78 | 78.7 | 87.9 | 88.9 | 450 | 10 |
| 4" | 101.6 | 102.6 | 113.2 | 114.3 | 600 | 5 |
|
|
| Brand Name: | HX |
| Model Number: | HX-LQ |
| MOQ: | 1000 M |
| Price: | negotiatiable |
| Packaging Details: | plastic film or carton packing |
| Payment Terms: | L/C, T/T |
1" Liquid tight flexible conduit , JSB Steel liquid tight conduit
FEATURES:
1) Material: (inner layer) adopting galvanized steel band with special insulation treatment
(outer layer) adopting PVC raw material (anti-UV, anti-aging)
2) Working temperature:-10 °c ~+80°c
3) Long service life
4 )Good mechanical protection
5) Good bending flexibility
6) The flexible pipes have extremely good waterproof, insulating and pull resistance.
7) The thickened surface is made of PVC. The surface is smooth. The PVC plastic is added with fire retarding agent.
8 )The structure is buckle structure, which enhances the pull resistance and is not liable to crack or deform.
| SIZE | ID(mm) | OD(mm) | Bending Radius (mm) |
Lenght/roll m | ||
| MIN | MAX | MIN | MAX | |||
| 1/2" | 15.8 | 16.2 | 20.8 | 21.3 | 85 | 50 |
| 3/4" | 20.7 | 21.1 | 26.3 | 21.6 | 100 | 50 |
| 1" | 6.2 | 26.8 | 32.7 | 33.4 | 150 | 50 |
| 11/4" | 34.7 | 35.3 | 41.4 | 42.2 | 180 | 20 |
| 11/2" | 40 | 40.7 | 47.4 | 48.3 | 220 | 20 |
| 2" | 50.8 | 51.6 | 59.4 | 60.3 | 250 | 20 |
| 21/2" | 63 | 63.6 | 72.1 | 73 | 300 | 10 |
| 3" | 78 | 78.7 | 87.9 | 88.9 | 450 | 10 |
| 4" | 101.6 | 102.6 | 113.2 | 114.3 | 600 | 5 |
