| Brand Name: | HX |
| Model Number: | HX-SSCP-S |
| MOQ: | 2000 PCS |
| Price: | negotiatiable |
| Delivery Time: | 15 -20 Days upon 1*20GP |
| Payment Terms: | L/C, T/T |

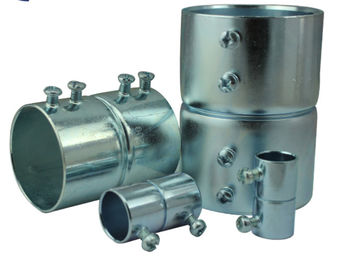

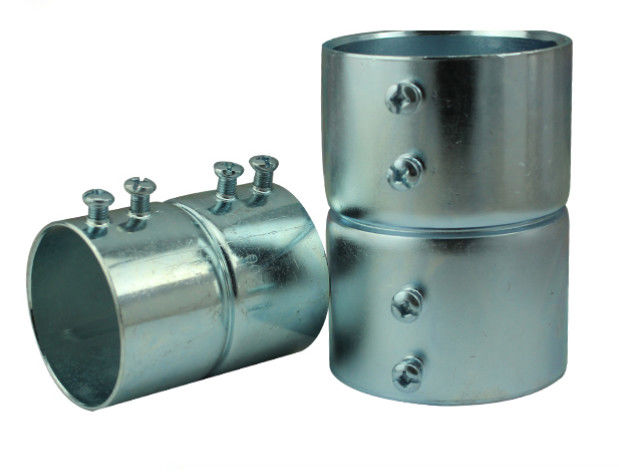

3/4" EMT fittings , EMT coupling steel , steel EMT coupling set screw type
The EMT fitting series is designed to provide solutions to connect steel EMT conduit to boxes and enclosures in commercial applications offered in various sizes and application types with ferrule compression or set screw providing ground continuity. It is made of steel galvanized.
Features:
- Steel
- Zinc Electro-Plated
- Concrete-Tight when Taped
- Suitable for applications above 600V
- Sizes 21/2" to 4" are also listed for RIGID and IMC Conduits
| Cat# | Size | D | D2 | L | |
| SSCP-S | -050 | 1/2" | 18.5 | 21.5 | 45 |
| SSCP-S | -075 | 3/4" | 24 | 27 | 63 |
| SSCP-S | -100 | 1" | 30.2 | 34.2 | 61 |
| SSCP-S | -125 | 11/4" | 39 | 43 | 72 |
| SSCP-S | -150 | 11/2" | 44.8 | 48.8 | 83 |
| SSCP-S | -200 | 2" | 56.5 | 60.5 | 95 |
| SSCP-S | -250 | 21/2" | 74 | 80 | 109 |
| SSCP-S | -300 | 3" | 90.5 | 96.5 | 114 |
| SSCP-S | -400 | 4" | 115.5 | 121.5 | 124 |
|
|
