| Brand Name: | HX |
| Model Number: | HX-SSCP-S |
| MOQ: | 2000 PCS |
| Price: | negotiatiable |
| Delivery Time: | 15 -20 Days upon 1*20GP |
| Payment Terms: | L/C, T/T |

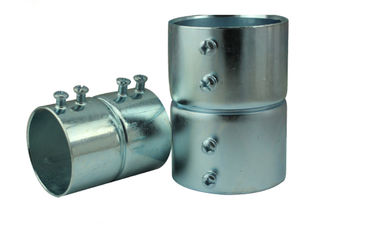

1/2" EMT fittings , EMT coupling steel , steel EMT coupling set screw type
Steel EMT set-screw electrical couplings are used in dry locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. In damp locations, set-screw couplings are of excellent corrosion protection with zinc electroplated. EMT set-screw couplings are made with a diverse combination screw head that can securely fasten conduit to designated electrical junction box or enclosure using a slotted Phillips, or Robertson head screw driver.
Features:
- Steel
- Zinc Electro-Plated
- Concrete-Tight when Taped
- Suitable for applications above 600V
- Sizes 21/2" to 4" are also listed for RIGID and IMC Conduits
| Cat# | Size | D | D2 | L | |
| SSCP-S | -050 | 1/2" | 18.5 | 21.5 | 45 |
| SSCP-S | -075 | 3/4" | 24 | 27 | 63 |
| SSCP-S | -100 | 1" | 30.2 | 34.2 | 61 |
| SSCP-S | -125 | 11/4" | 39 | 43 | 72 |
| SSCP-S | -150 | 11/2" | 44.8 | 48.8 | 83 |
| SSCP-S | -200 | 2" | 56.5 | 60.5 | 95 |
| SSCP-S | -250 | 21/2" | 74 | 80 | 109 |
| SSCP-S | -300 | 3" | 90.5 | 96.5 | 114 |
| SSCP-S | -400 | 4" | 115.5 | 121.5 | 124 |
|
|
