| Brand Name: | HX |
| Model Number: | LTA |
| MOQ: | 2000 pcs |
| Price: | negotiatiable |
| Delivery Time: | within 15 days upon 20 GP |

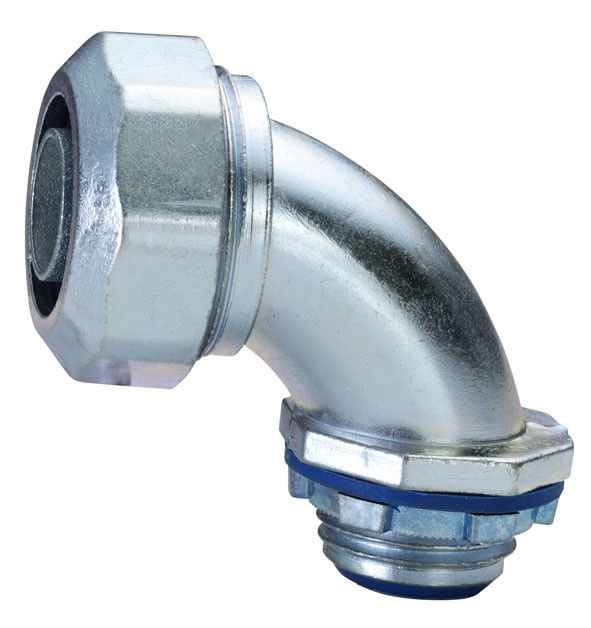

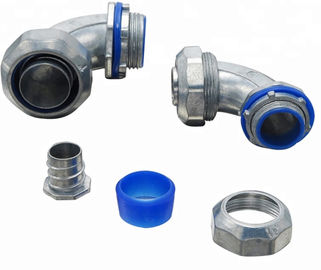

3/4" Liquid tight connecotr 90 degree , Flexible Conduit And Fittings Liquid Tight Connector Angle type
Liquid Tight Straight/Angle Connector
Application:
* For use with Liquidtight Flexible Metallic Conduit Malleable Iron
Features:
• Tapered threaded male hub -NPT
• Compact, slim diameter
• Steel locknut
• Liquidtight/Raintight/Oiltight/Concrete tight
• Suitable for wet locations
• Long ferrule prevents pullout & tight bend conduit pop out
Standard Materials:
Malleable iron/Steel ferrule/Steel locknut
Standard Finish:
Zinc plated
Products show for Ul Liquid Tight Connector
| Cat# | Size | d1 | d2 | h | h2 | |
| LTA | -012 | 3/8" | 19.5 | G1/2" | 25 | 28 |
| LTA | -50 | 1/2" | 22.5 | G1/2" | 28 | 32 |
| LTA | -75 | 3/4" | 28.5 | G3/4" | 36 | 41 |
| LTA | -100 | 1" | 35 | G1" | 40 | 44 |
| LTA | -125 | 11/4" | 44 | G11/4" | 50 | 55 |
| LTA | -150 | 11/2" | 50 | G11/2" | 54 | 59 |
| LTA | -200 | 2" | 63 | G2" | 64 | 66 |
| LTA | -250 | 21/2" | 78 | G21/2" | 70 | 77 |
| LTA | -300 | 3" | 90 | G3" | 84 | 94 |
| LTA | -400 | 4" | 116 | G4" | 100 | 110 |
|
|
| Brand Name: | HX |
| Model Number: | LTA |
| MOQ: | 2000 pcs |
| Price: | negotiatiable |
| Packaging Details: | Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet (customers' packing requiement accepted ) |
3/4" Liquid tight connecotr 90 degree , Flexible Conduit And Fittings Liquid Tight Connector Angle type
Liquid Tight Straight/Angle Connector
Application:
* For use with Liquidtight Flexible Metallic Conduit Malleable Iron
Features:
• Tapered threaded male hub -NPT
• Compact, slim diameter
• Steel locknut
• Liquidtight/Raintight/Oiltight/Concrete tight
• Suitable for wet locations
• Long ferrule prevents pullout & tight bend conduit pop out
Standard Materials:
Malleable iron/Steel ferrule/Steel locknut
Standard Finish:
Zinc plated
Products show for Ul Liquid Tight Connector
| Cat# | Size | d1 | d2 | h | h2 | |
| LTA | -012 | 3/8" | 19.5 | G1/2" | 25 | 28 |
| LTA | -50 | 1/2" | 22.5 | G1/2" | 28 | 32 |
| LTA | -75 | 3/4" | 28.5 | G3/4" | 36 | 41 |
| LTA | -100 | 1" | 35 | G1" | 40 | 44 |
| LTA | -125 | 11/4" | 44 | G11/4" | 50 | 55 |
| LTA | -150 | 11/2" | 50 | G11/2" | 54 | 59 |
| LTA | -200 | 2" | 63 | G2" | 64 | 66 |
| LTA | -250 | 21/2" | 78 | G21/2" | 70 | 77 |
| LTA | -300 | 3" | 90 | G3" | 84 | 94 |
| LTA | -400 | 4" | 116 | G4" | 100 | 110 |
