| Brand Name: | HX |
| Model Number: | LTS |
| MOQ: | 2000 pcs |
| Price: | negotiatiable |
| Delivery Time: | within 15 days upon 20 GP |

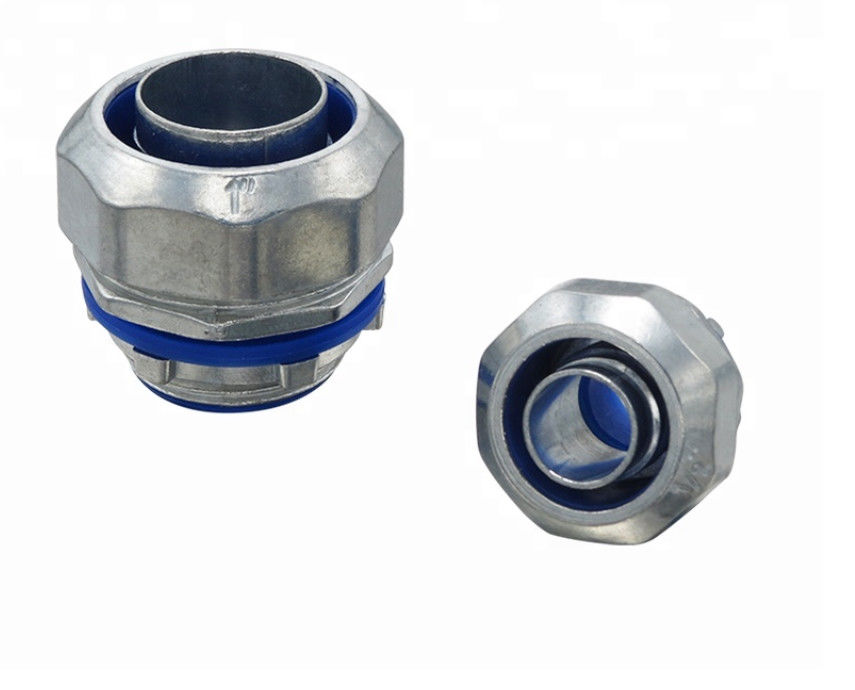

1" Liquid tight straight connecotr , Straight Flexible Conduit And Fittings Liquid Tight Connector
UL LISTED Straight liquid -tight connectors are used to terminate and seal liquid-tight flexible metal and liquid -tight flexible Nonmetallic Type B conduits to either an oil-tight,liquid-tight or rain-tight box or enclosure,connector can be used with tapered thread female entry or unthreaded knock-out using the provided sealing washer and locknut.
1) liquid tight angle connector
2) Liquid Tight Connector 90 angle
3) Full range size from 3/8" to 4"
· Liquid tight angle connector
· Available size: 3/8 inch to 4 inch
· Zinc Die Casting
· For use with both metallic liquid tight conduit and nonmetallic liquid tight conduit

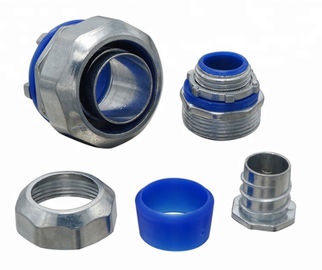

· Furnished with locknut and sealing ring
· Yellow and Blue two kinds of gasket available
Packaging & Delivery
Packaging Details1. Common Packing : Inner plastic bag + Export Carton.
2. Customized Packing : OEM Label , Inner Box , Zip Lock Bag , etc. , as per requirements.PortNingbo or Shanghai
| Cat# | Size | d1 | d2 | L | |
| LTS | -012 | 3/8" | 16.5 | G1/2" | 17 |
| LTS | -050 | 1/2" | 18.5 | G1/2" | 19 |
| LTS | -075 | 3/4" | 24 | G3/4" | 23.3 |
| LTS | -100 | 1" | 30 | G1" | 25 |
| LTS | -125 | 11/4" | 38.8 | G11/4" | 34 |
| LTS | -150 | 11/2" | 45 | G11/2" | 36.2 |
| LTS | -200 | 2" | 56.4 | G2" | 43 |
| LTS | -250 | 21/2" | 74 | G21/2" | 74 |
| LTS | -300 | 3" | 90 | G3" | 85 |
| LTS | -400 | 4" | 115 | G4" | 9 |
|
|
| Brand Name: | HX |
| Model Number: | LTS |
| MOQ: | 2000 pcs |
| Price: | negotiatiable |
| Packaging Details: | Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet (customers' packing requiement accepted ) |
1" Liquid tight straight connecotr , Straight Flexible Conduit And Fittings Liquid Tight Connector
UL LISTED Straight liquid -tight connectors are used to terminate and seal liquid-tight flexible metal and liquid -tight flexible Nonmetallic Type B conduits to either an oil-tight,liquid-tight or rain-tight box or enclosure,connector can be used with tapered thread female entry or unthreaded knock-out using the provided sealing washer and locknut.
1) liquid tight angle connector
2) Liquid Tight Connector 90 angle
3) Full range size from 3/8" to 4"
· Liquid tight angle connector
· Available size: 3/8 inch to 4 inch
· Zinc Die Casting
· For use with both metallic liquid tight conduit and nonmetallic liquid tight conduit
· Furnished with locknut and sealing ring
· Yellow and Blue two kinds of gasket available
Packaging & Delivery
Packaging Details1. Common Packing : Inner plastic bag + Export Carton.
2. Customized Packing : OEM Label , Inner Box , Zip Lock Bag , etc. , as per requirements.PortNingbo or Shanghai
| Cat# | Size | d1 | d2 | L | |
| LTS | -012 | 3/8" | 16.5 | G1/2" | 17 |
| LTS | -050 | 1/2" | 18.5 | G1/2" | 19 |
| LTS | -075 | 3/4" | 24 | G3/4" | 23.3 |
| LTS | -100 | 1" | 30 | G1" | 25 |
| LTS | -125 | 11/4" | 38.8 | G11/4" | 34 |
| LTS | -150 | 11/2" | 45 | G11/2" | 36.2 |
| LTS | -200 | 2" | 56.4 | G2" | 43 |
| LTS | -250 | 21/2" | 74 | G21/2" | 74 |
| LTS | -300 | 3" | 90 | G3" | 85 |
| LTS | -400 | 4" | 115 | G4" | 9 |
